AI-native wire harness design with schematic, layout, BOM and to-scale formboard in one live document.

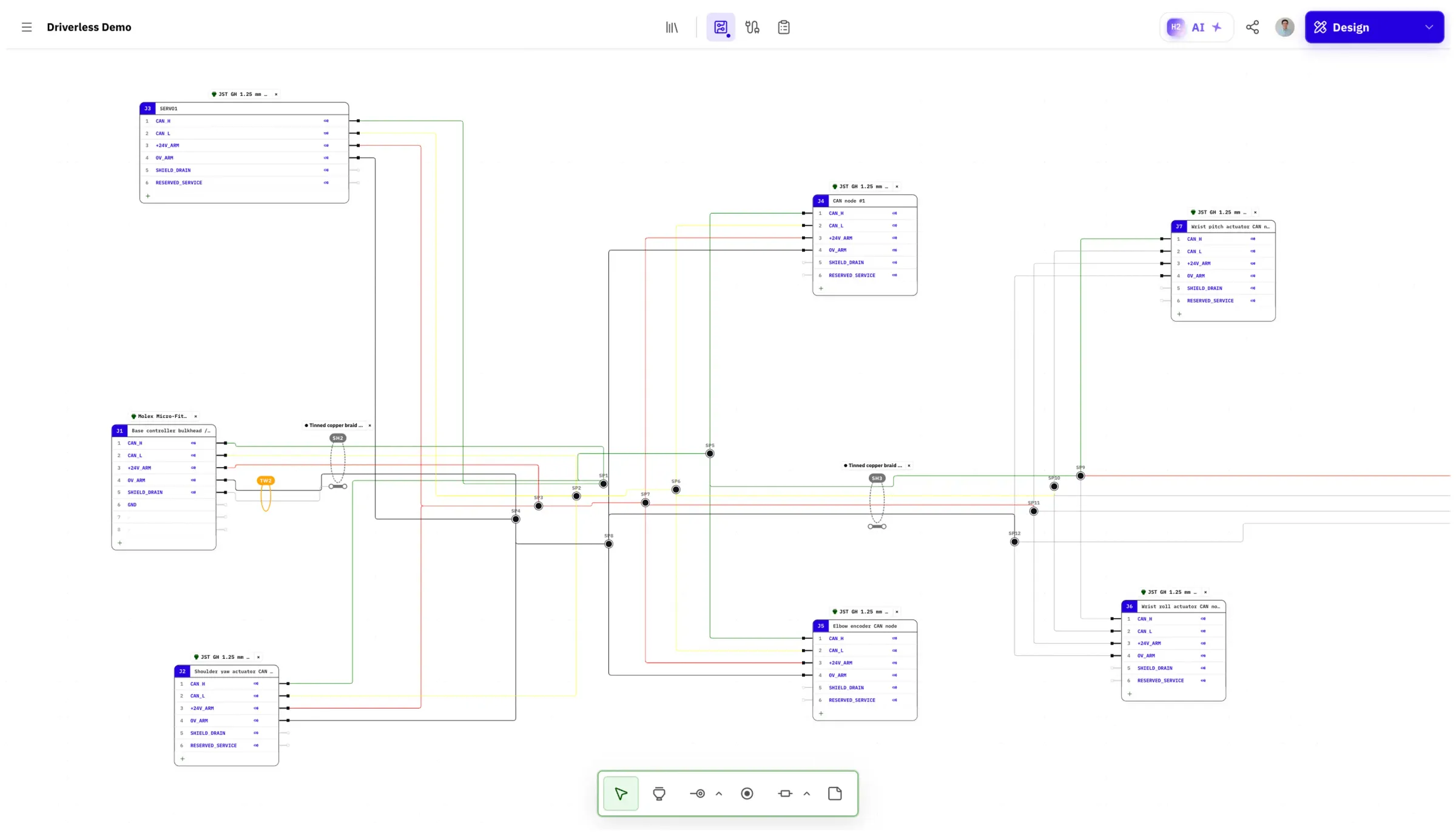

Schematic view
1 / 2Overview
What is HarnessHive?
Wire harness design, reimagined
HarnessHive is an AI-native design ecosystem for wire harness engineers. Schematic, layout, BOM and a to-scale formboard all live in one live document, with an assistant that helps at every step. Ask the assistant to find real parts from trusted supplier sources, add them to your library, place them and connect the cavities - every edit arrives as a proposal and nothing changes until you apply it. Teams draw together in real time with live cursors, per-user undo and role-based access, while versioned parts libraries pin the exact part version each harness was built with. Import wire lists and whole harnesses, and export full-scale formboard PDFs, BOM and cut lists as XLSX, or harness JSON. An MCP server lets your own agent read harnesses, BOMs, empty cavities and libraries. It runs in the browser with nothing to install, and starts with a 14-day trial with no credit card.
Platforms and languages
HarnessHive Availability
Platforms
Languages
Capabilities
HarnessHive Key Features
One live document

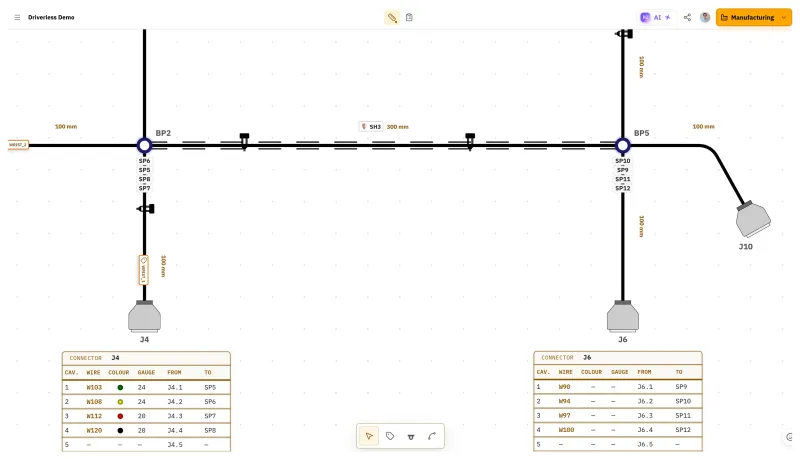

Schematic, layout, BOM and a to-scale formboard stay in sync in a single document.
AI assistant
Ask the assistant to find real parts from supplier sources, add them to your library, place them and connect cavities; every edit arrives as a proposal.
Real-time collaboration
Everyone edits the same live harness with live cursors, per-user undo and Viewer, Editor and Admin roles.
Versioned parts libraries
Every part occurrence pins the exact version it was built with, so library updates never silently change a design.
Imports and exports
Bring wire lists, supplier data and whole harnesses in; send out 1:1-scale formboard PDFs, BOM and cut lists as XLSX, and harness JSON.
Agents and MCP
An MCP server lets Claude, ChatGPT, Cursor or your own agent read harnesses, BOMs, empty cavities and libraries.
Best for
Who uses HarnessHive?
Wire harness engineers and design teams
Design schematics, layouts, BOMs and formboards collaboratively in one browser-based tool
Startups, machine builders and student teams
Ship a first harness without buying a seat of legacy EDA software
Plans and access
HarnessHive Pricing
Unknown
14-day trial, no credit card required; pricing not published on the site.
